YORNEW's VMC200-Siemens small education CNC mill machine offers a small footprint,it provides full CNC capabilities in a compact space. Moreover, this efficiently competent small CNC mill comes at an affordable price,with SINUMERIK 808D ADVANCED controller,selection of high-quality casting materials,high-precision linear guide and ballscrews,automatic lubrication system.Option 5 tools automatic tool change system(ATC), frequency conversion water cooling spindle motor, low noise, 24000rpm spindle supreme speed.Standard spec XYZ axis is AC servo motor.With the of flood coolant with industrial cabinet base and and automatic aligning instrument.It can process ferrous metal stainless steel, 45 steel, non-ferrous metal copper, aluminum, plastic and wood and other different materials.Suitable for ocational technical college Education & Training CNC.

Siemens Educational CNC Milling Machines

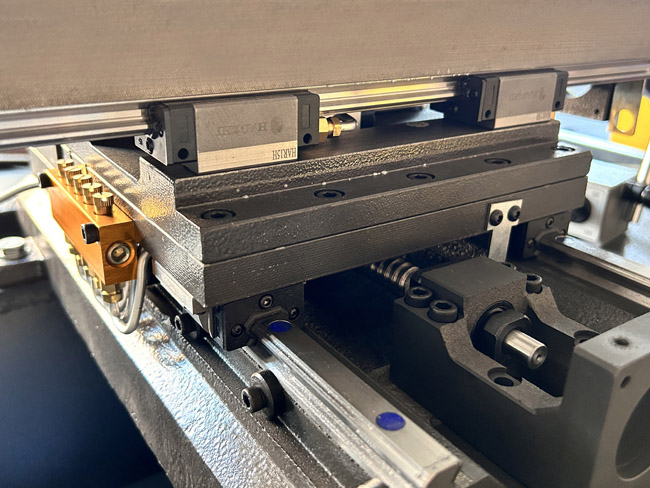

Machine tool body

Machine tool bod selection of high-quality casting materials,high-precision linear guide and ballscrews,automatic lubrication system,protect the rail life,experience the pinnacle of precision, reliability, and longevity with our small CNC mill machine, featuring a high- quality casting materials for unwavering rigidity, high-precision linear guides and ball screws for unmatched precision.

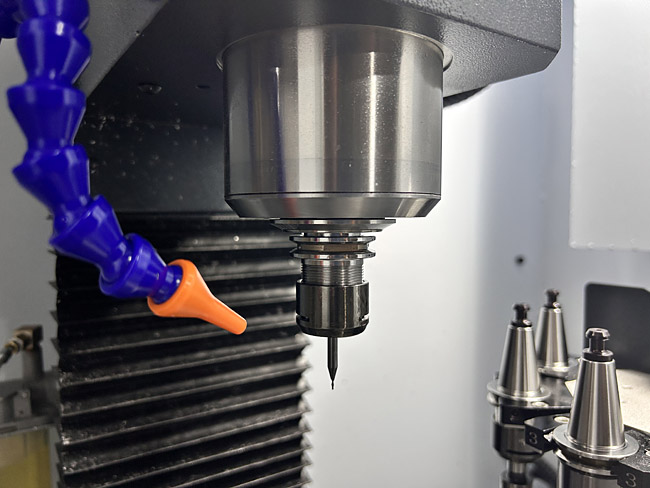

Powerful and versatile spindle

Our high-performance spindle delivers exceptional power and versatility, catering to a wide range of machining needs. The variable-frequency drive allows for precise speed control, optimizing performance for specific materials and applications. With manual and automatic tool change capabilities, our control system adapts to your workflow, empowering you to achieve operational excellence.

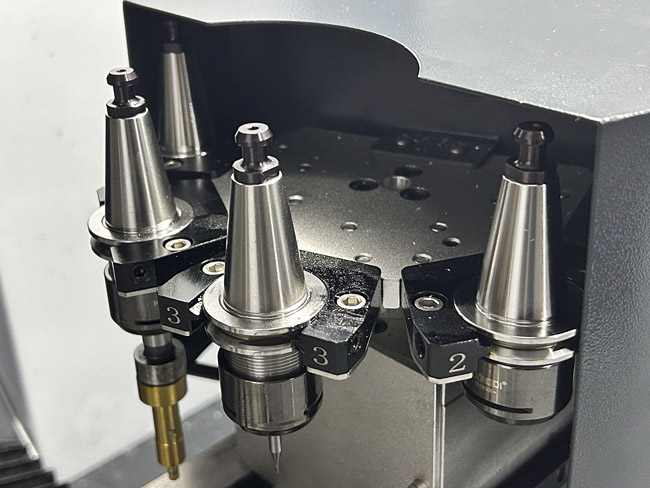

Option automatic tool change system

The robust 5-station self-locking rotary tool carousel safeguards against misoperation, while the protective dust cover ensures that machining accuracy remains uncompromised. Experience the pinnacle of precision with our water-cooled spindle, variable-frequency drive, and pneumatic tool change, ensuring consistent performance and unwavering accuracy.

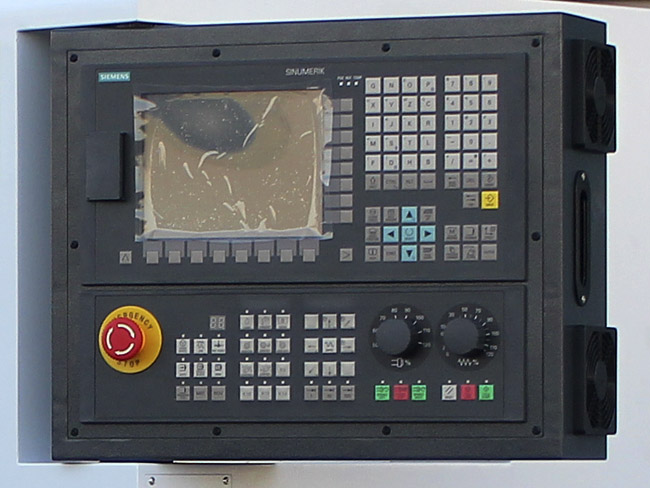

SINUMERIK 808D Controller

SINUMERIK 808D ADVANCED brings impetus into basic turning and milling machines. CNCs from the global technology leader, teamed-up with a revolutionary operating concept make the SINUMERIK 808D ADVANCED the perfect entry into the world of CNC.

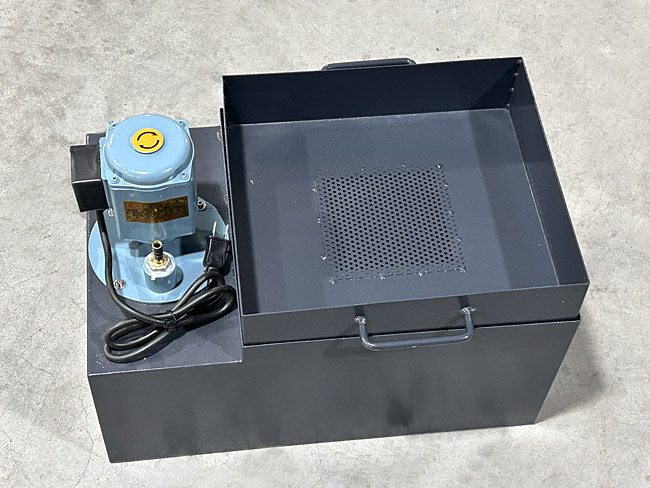

Efficient Cooling and Filtration

Our large-capacity circulation cooling water tank, equipped with a filtration system, effectively dissipates heat and removes impurities, ensuring optimal performance and extending the lifespan of your tools and spindle. With manual and automatic control options, our system adapts to your specific needs.

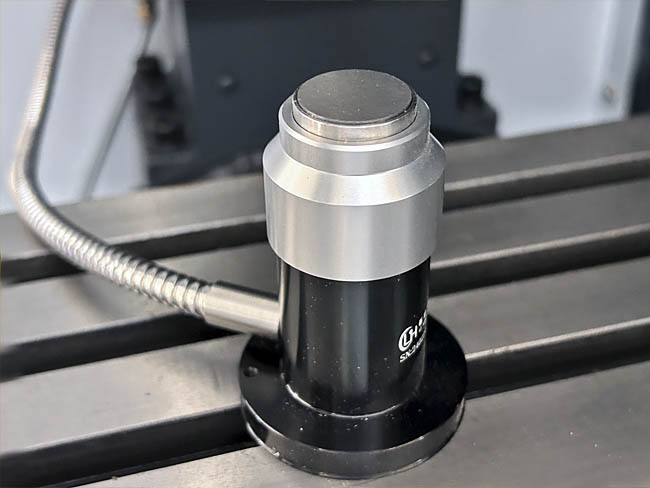

Optional Z axis tool setter

Support high precision Z Axis Setter,industrial-grade automatic tool setter,make it easier for you to operate.

Technical parameters
Description	Standard	Optional
X axis travel	230mm
Y axis travel	130mm
Z axis travel	220mm
A axis travel	/	360°
Spindle taper	ER20	ISO20
Automatic tool change system	/	5 Tools
Pneumatic supply	/	0.6 MPa
Tool DIA. range	1-13mm
Control system	SINUMERIK 808D	Fanuc Series OI-MF Plus Controller
Spindle power	2.2kw
Spindle speed	100-24000rpm
Spindle Cooling	Water Cooled / 10L
Work-piece cooling	Water Cooled /29L
XYZ axis motor type	400W AC server motor
Rapid feed rate	10000mm/min
Cutting feed rate	5000mm/min
Positioning accuracy	0.02mm
Repeatability accuracy	0.01mm
Transmission	ball screw
guide rail	High-precision linear guide
Table size	460*130mm
Number of T-slots	3
T-Slot Width	12mm
Max Weight on Table (evenly distributed)	30kg
Table structure	Full cast iron
Power	380VAC (3 Phase)
Weight(NW/GW)	250/350kg

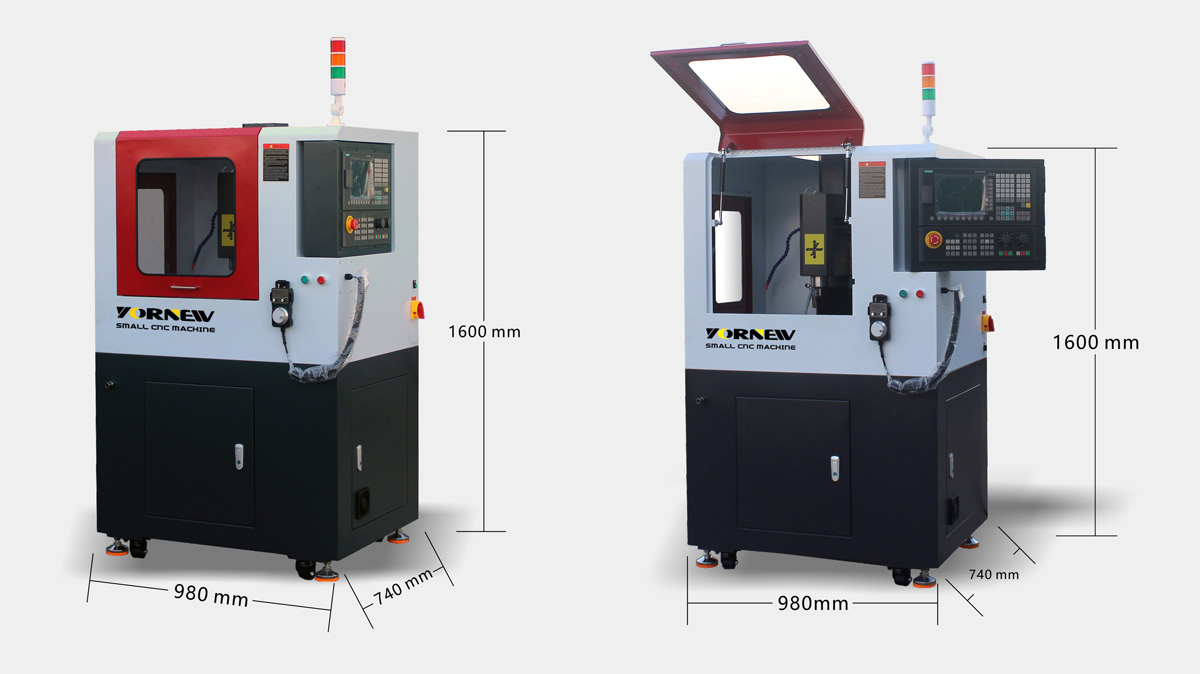

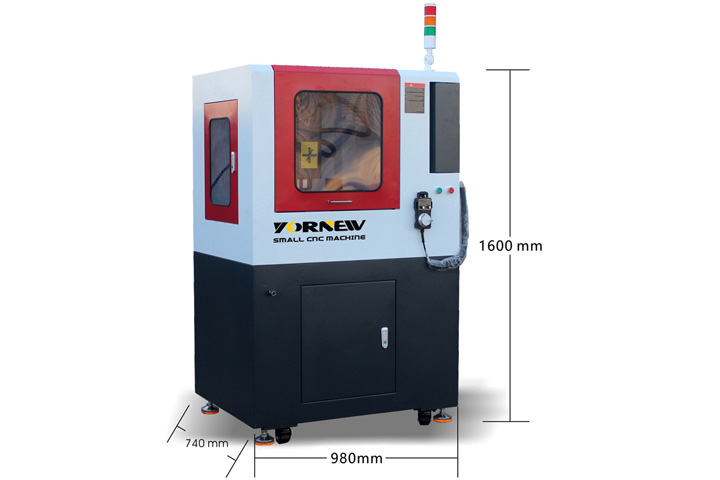

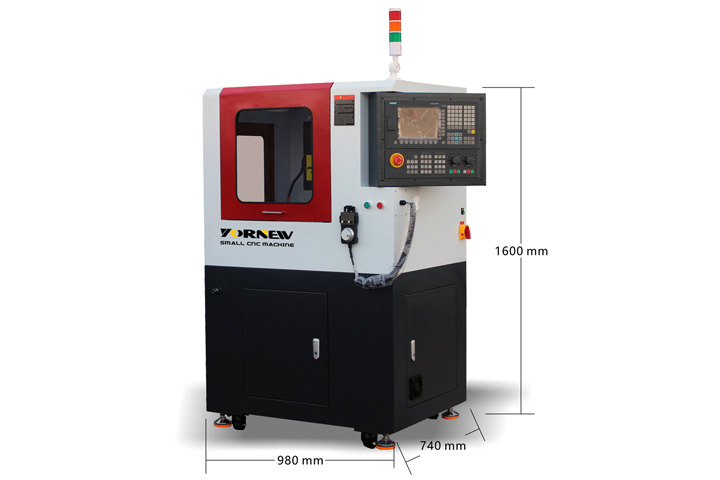

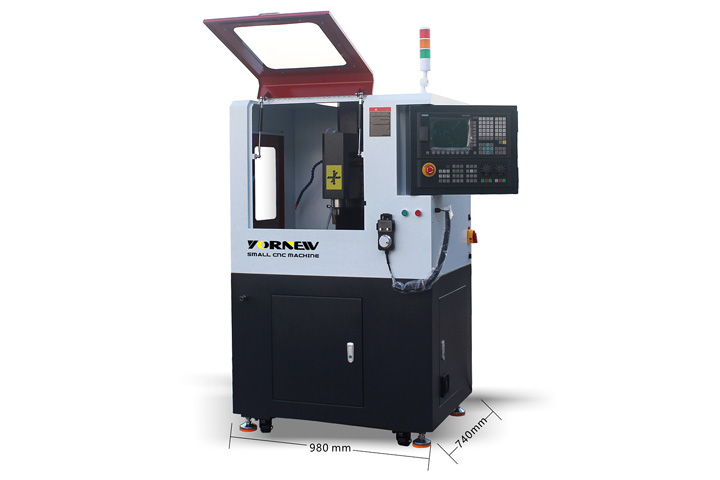

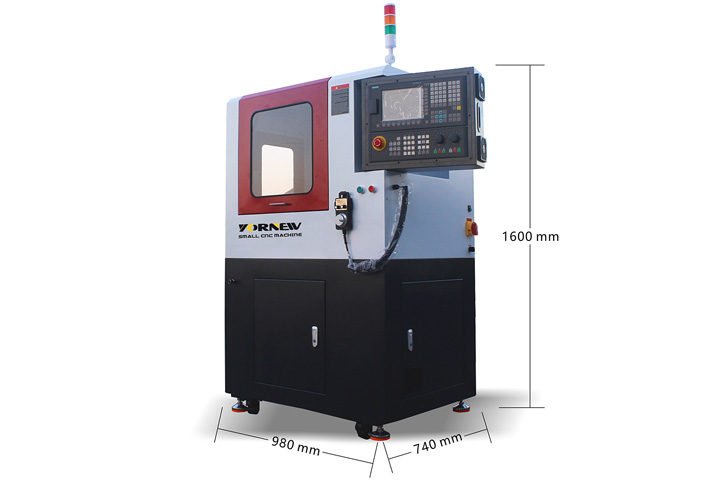

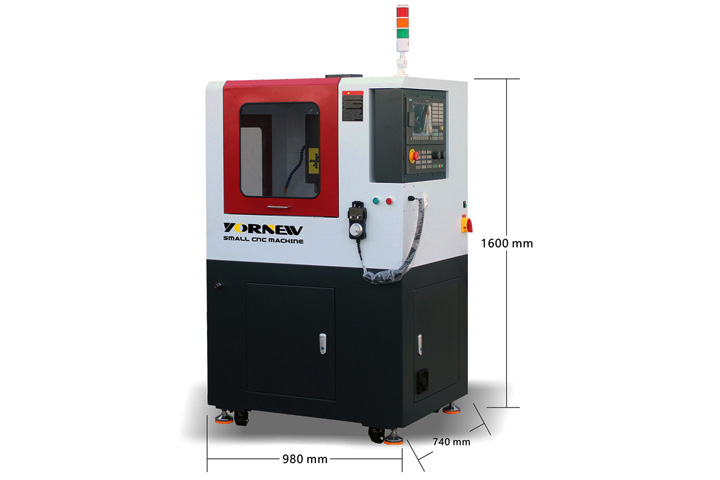

Overall dimension	980×740×1600mm
Packing size	1100×800×1800mm
